How to reproduce bugs from syzkaller

Case 1: If you have a C reproducer

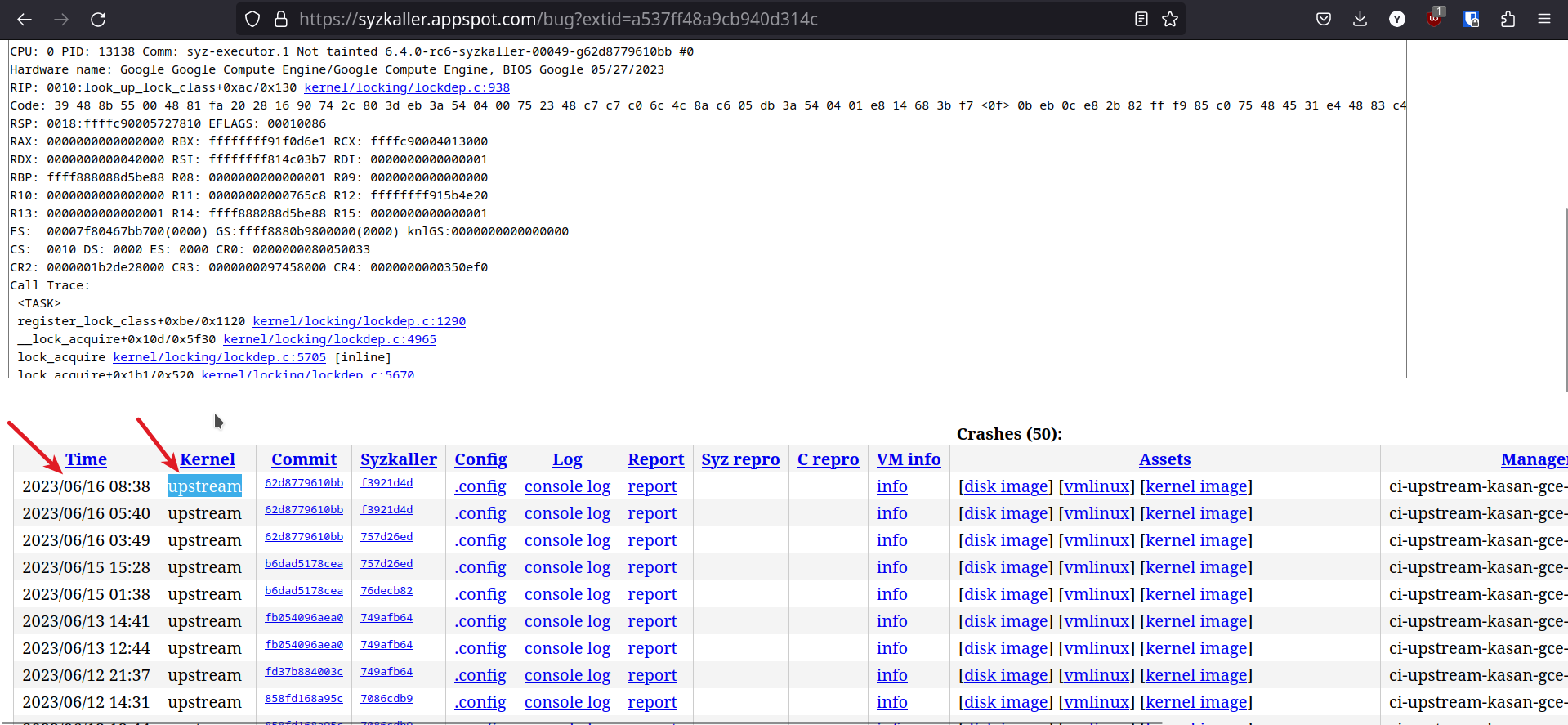

1. Navigate to the syzkaller bug link

   1. If the bug is found in the upstream kernel



      then download the kernel-image from the link using wget

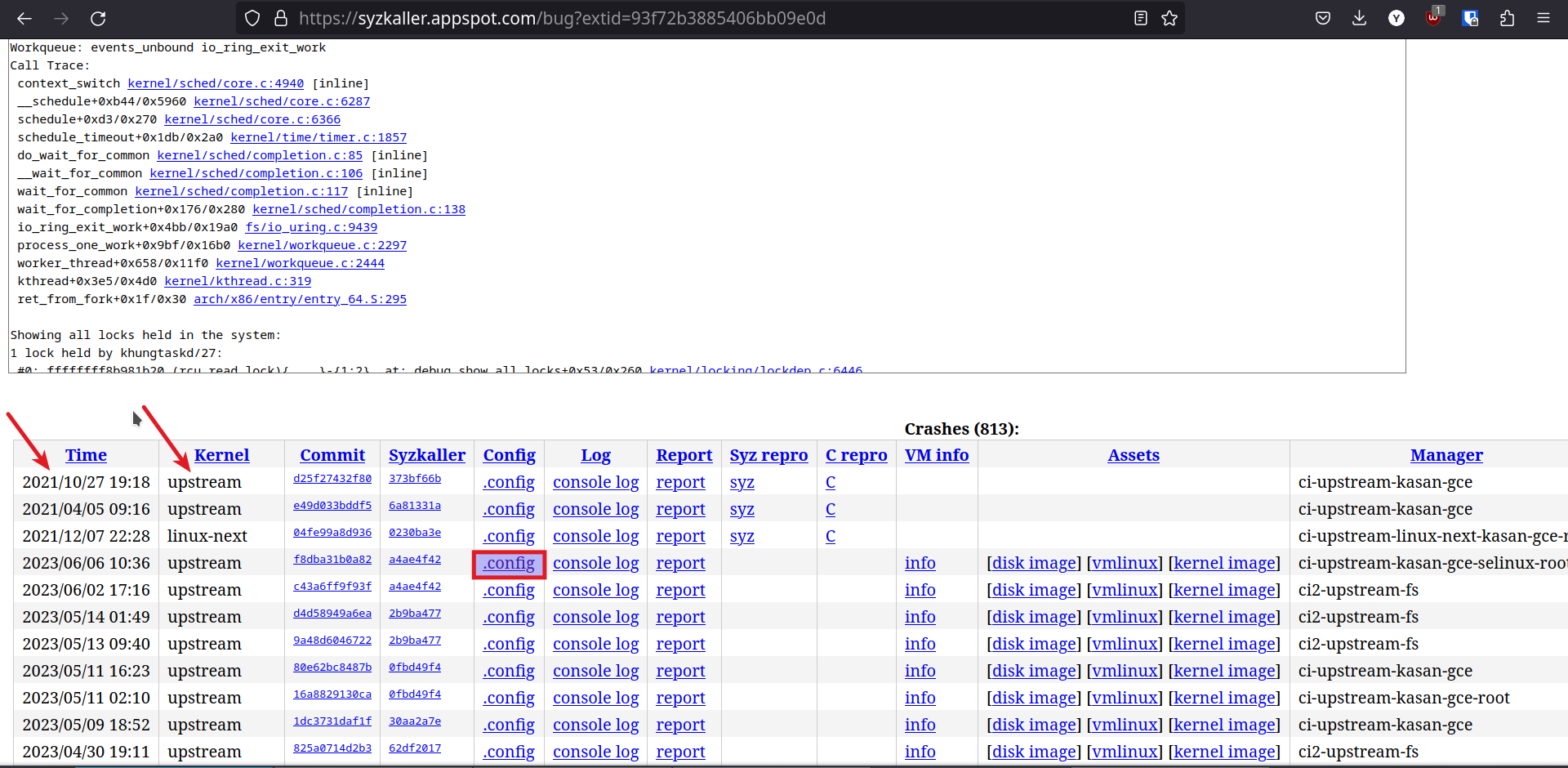

   2. If the bug is found not on the upstream kernel, then it is best to download the .config file and build the latest upstream kernel

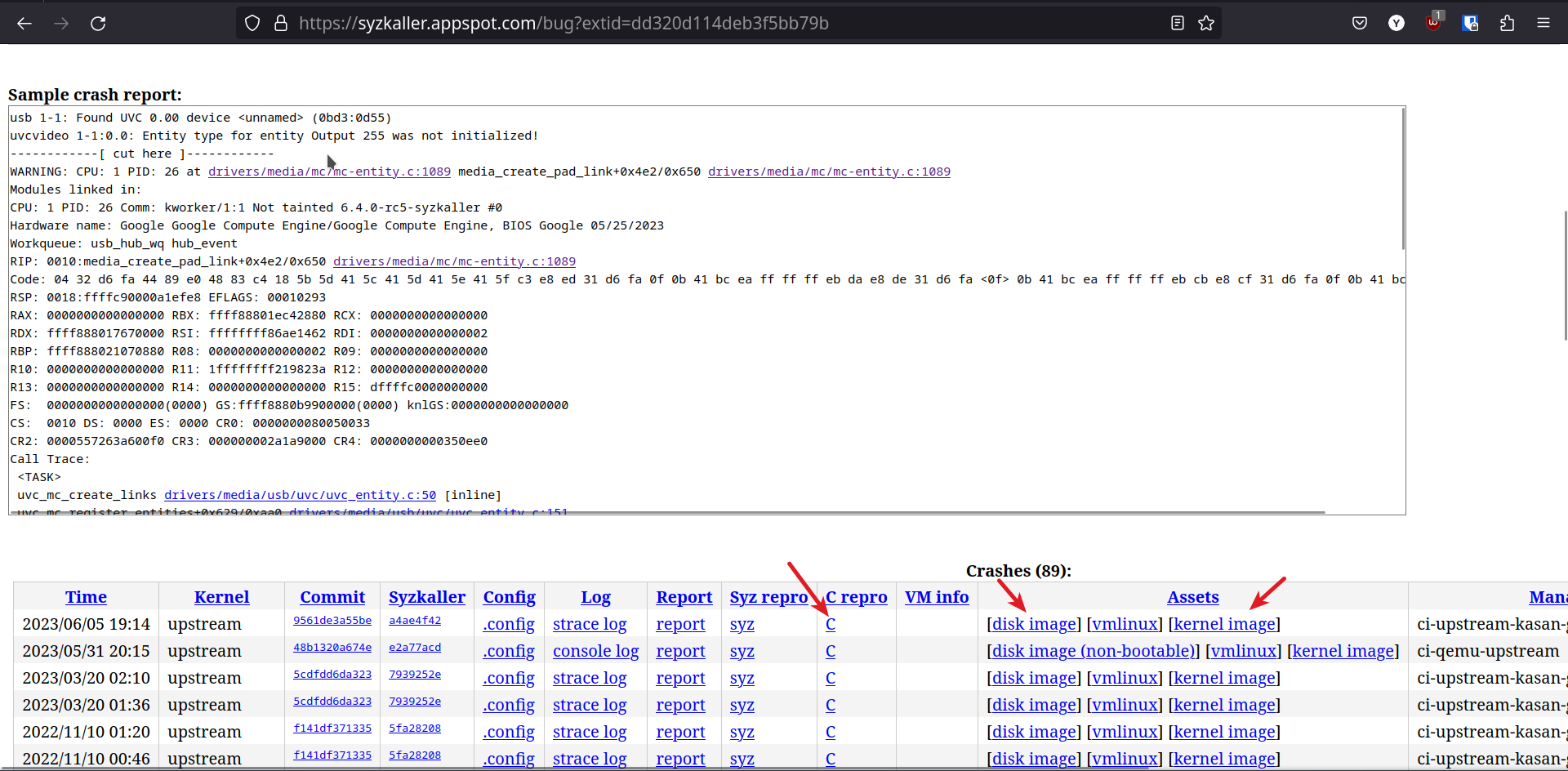

2. Now that the kernel is downloaded and ready, download these artifacts too.

   • disk image
   • C repro, save as .c file



3. Extract the disk image and kernel image

   $ xz --decompress <disk-image>
   $ xz --decompress <kernel-image>


4. Start VM, by running commands

   $ export KERNEL_IMG=<full-path-to-kernel-image>
   $ export RFS_IMG=<full-path-to-disk-image>

   $ qemu-system-x86_64 -m 2G -smp 2 -kernel ${KERNEL_IMG} -append "console=ttyS0 root=/dev/sda1 earlyprintk=serial net.ifnames=0" -drive file=${RFS_IMG},format=raw -net user,host=10.0.2.10,hostfwd=tcp:127.0.0.1:10021-:22 -net nic,model=e1000 -enable-kvm -nographic -pidfile vm.pid 2>&1 | tee vm.log


5. Compile the C repro file

   $ gcc -o repro1 repro1.c


   Note: Cross compile for arch other than x86_64

6. Copy the compiled executable file into vm

   $ scp -P 10021 -r ./repro1 root@localhost:~/


7. SSH into the VM and run the compiled program

   $ ssh root@localhost -p 10021
   # ./repro1

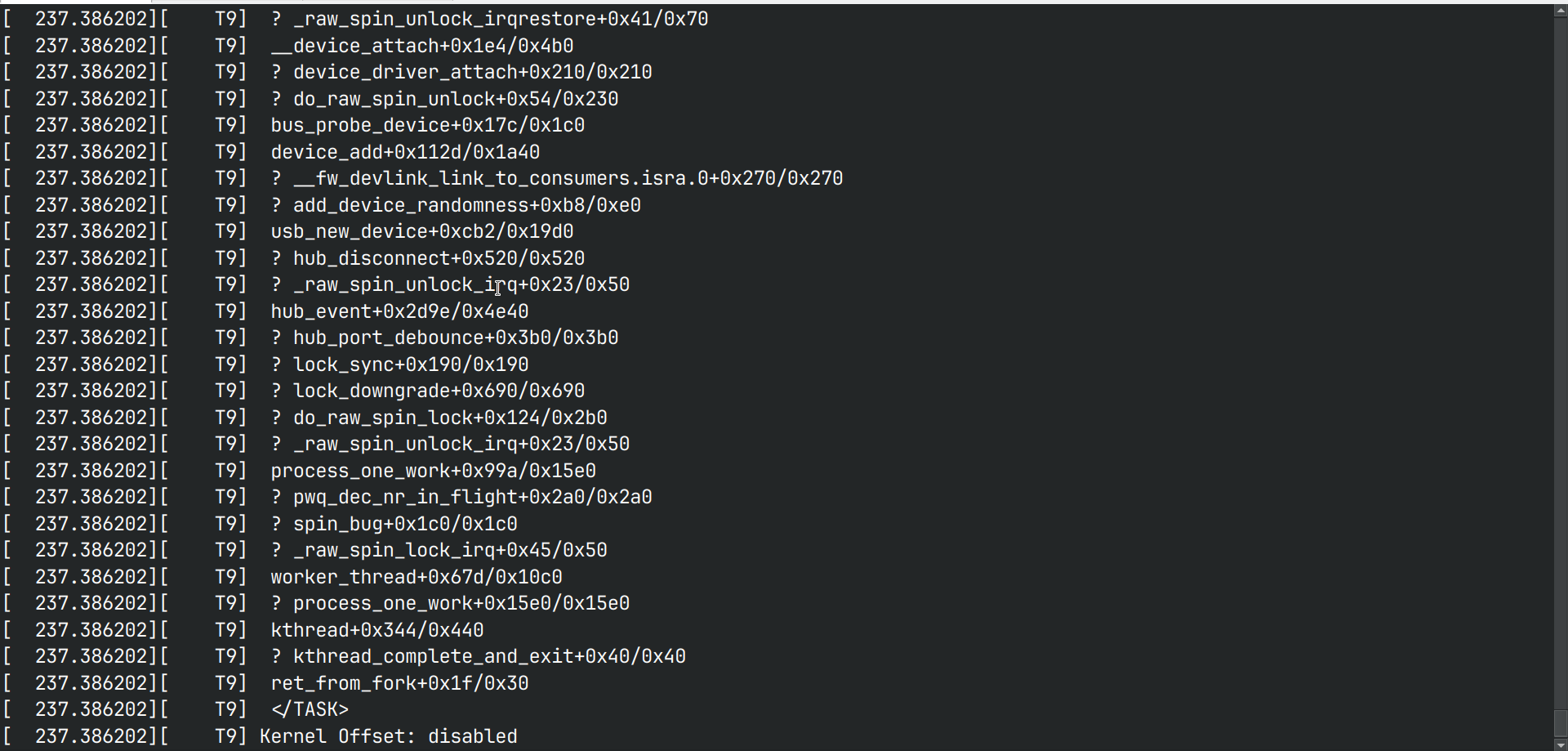

8. If the bug is not fixed then it will give a kernel panic.



9. If there is no panic then the bug has been fixed.

Case 2: If you have a Syz reproducer

1. Navigate to the syzkaller bug link

   1. If the bug is found in the upstream kernel



      then download the kernel-image from the link using wget

   2. If the bug is found not on the upstream kernel, then it is best to download the .config file and build the latest upstream kernel

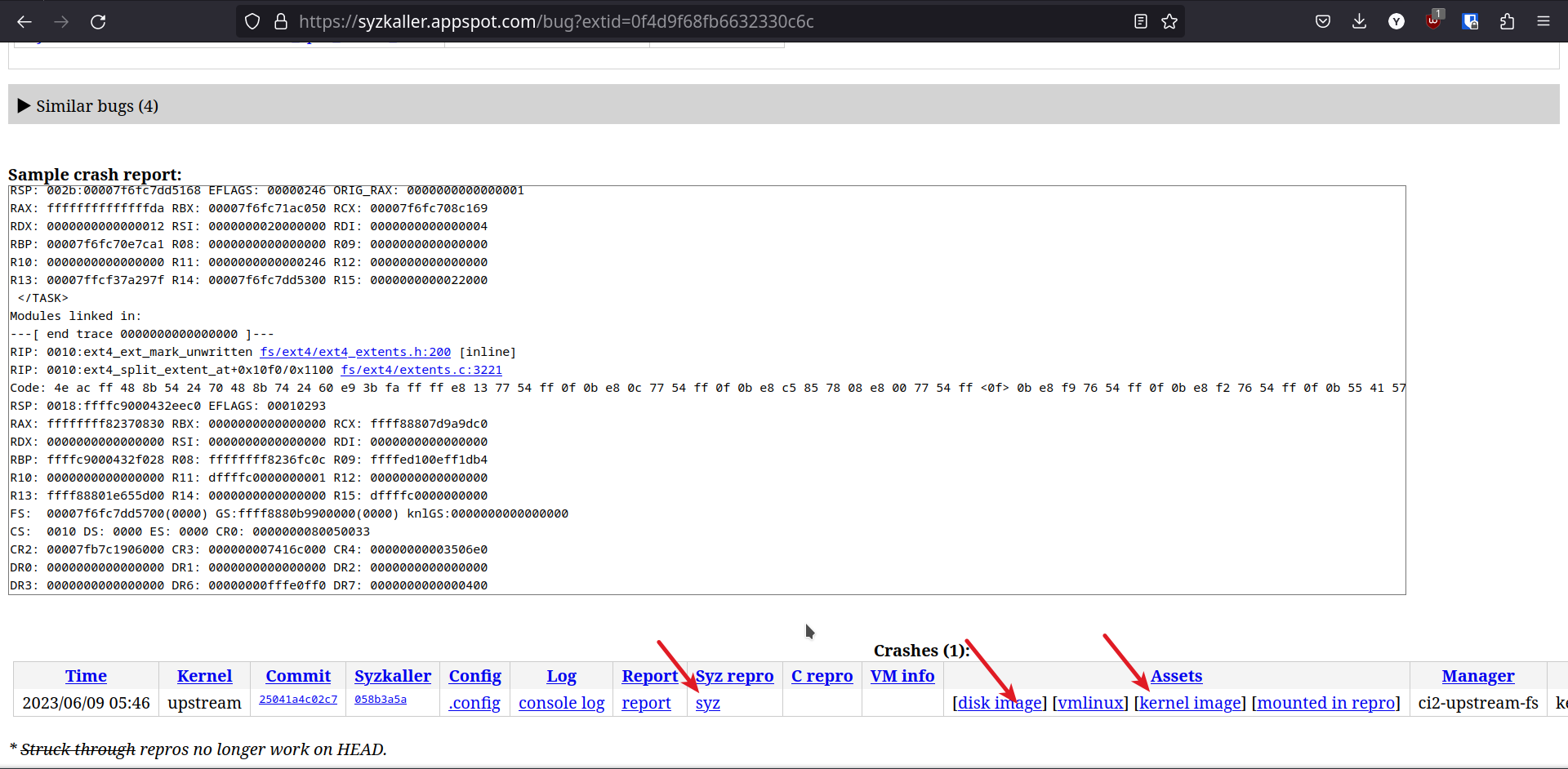

2. Now that the kernel is downloaded and ready, download these artifacts too.

   • disk image

   • syz repro, save as .txt file



3. Extract the disk image and kernel image

   $ xz --decompress <disk-image>
   $ xz --decompress <kernel-image>


4. Start VM, by running commands

   $ export KERNEL_IMG=<full-path-to-kernel-image>
   $ export RFS_IMG=<full-path-to-disk-image>

   $ qemu-system-x86_64 -m 2G -smp 2 -kernel ${KERNEL_IMG} -append "console=ttyS0 root=/dev/sda1 earlyprintk=serial net.ifnames=0" -drive file=${RFS_IMG},format=raw -net user,host=10.0.2.10,hostfwd=tcp:127.0.0.1:10021-:22 -net nic,model=e1000 -enable-kvm -nographic -pidfile vm.pid 2>&1 | tee vm.log


5. Copy the files syz-executor syz-execprog and syz.txt into vm

   $ scp -P 10021 -r <path-to-syzkaller>/syzkaller/bin/linux_amd64/syz-executor <path-to-syzkaller>/syzkaller/bin/linux_amd64/syz-execprog ./syz.txt root@localhost:~/


   Note: files syz-executor and syz-execprog are part of syzkaller, for this you have to compile the syzkaller on your machine. For instructions on compiling syzkaller see link

6. SSH into the VM and run the command

   $ ssh root@localhost -p 10021
   # ./syz-execprog -executor=./syz-executor -repeat=0 -procs=12 -cover=0 ./syz.txt


7. If the bug is not fixed then it will give a kernel panic.



8. If there is no panic then the bug probably has been fixed.
