How to use syzkaller

Syzkaller is an unsupervised kernel fuzzer that uses both structured fuzzing & coverage-guided fuzzing techniques to apply fuzzing to kernel syscalls.

How it works

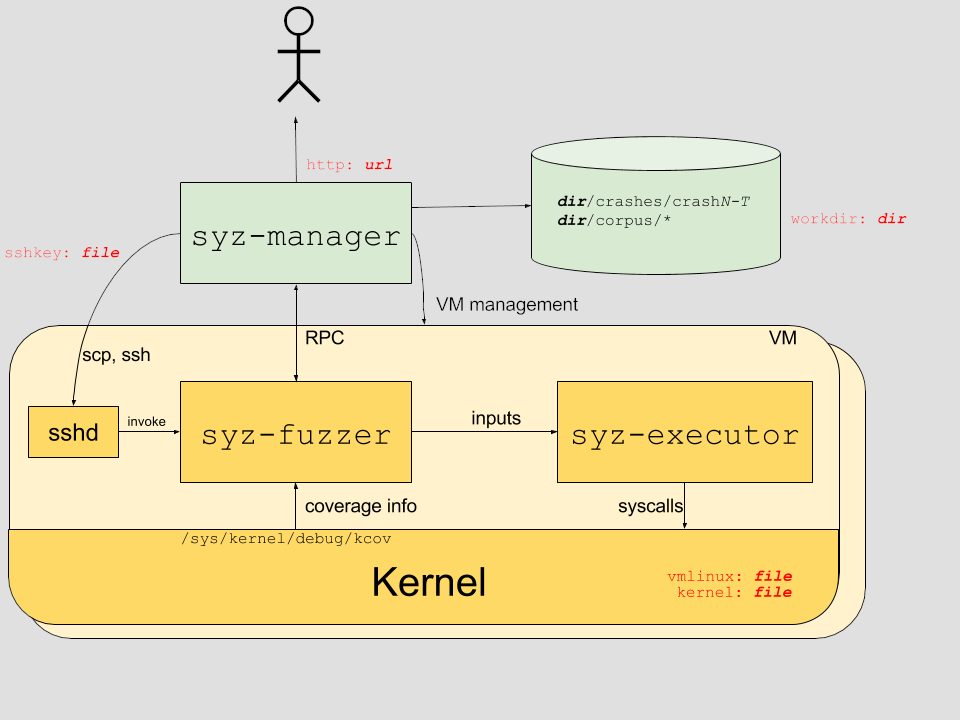

manager

Manager controls the test system, spwans vm's with fuzzers inside them which generate small programs which invoke syscalls.

VM's communication using RPC and log the coverage achieved and trace information which is stored in the database.

Describing syscalls

Syzkaller has a separate language for Describing syscalls.

For example: the open() syscall below

int open(const char *pathname, int flags, mode_t mode);

is described in syzkaller as:

open(file ptr[in, filename], flags flags[open_flags], mode flags[open_mode]) fd

file ptr[in, filename]: the first argument, called file, is an input pointer containing a filename string.
flags flags[open_flags]: the flags argument is any of the flags defined at open_flags array open_flags = O_WRONLY, O_RDWR, O_APPEND, ...
mode flags[open_mode]: mode argument is any of the flags defined at open_mode array open_mode = S_IRUSR, S_IWUSR, S_IXUSR, ...

fd: the return value will be stored here, to be later used on other syscalls.

for example:

read(fd fd, buf buffer[out], count len[buf])
write(fd fd, buf buffer[in], count len[buf])

If instead of fd (file descriptior) we want to fuzz integer values from 0 to 500 then we use syntax int64[0:500]

syzkaller provides generic descrption for ioctl()

ioctl(fd fd, cmd intptr, arg buffer[in])

and also provides specific ones like

ioctl$DRM_IOCTL_VERSION(fd fd_dri, cmd const[DRM_IOCTL_VERSION], arg ptr[in, drm_version])
ioctl$VIDIOC_QUERYCAP(fd fd_video, cmd const[VIDIOC_QUERYCAP], arg ptr[out, v4l2_capability])

See the refernce below for more.

Ref: https://github.com/google/syzkaller/blob/master/docs/syscall_descriptions_syntax.md

Setting up syzkaller

Follow the steps given here to setup syzkaller - https://github.com/google/syzkaller/blob/master/docs/linux/setup.md

Tips for running syzkaller

Use different defconfigs
Limit the syscalls to 3-4 chosen, by adding the below in config.config
```
"enable_syscalls": [ "ptrace", "getpid" ],
```

Fuzzing your patch changes in syzkaller

If you make a change in kernel and want to fuzz your changes in syzkaller, this can be done by following the steps below:

Modify the kernel and compile.
Add a new syscall description in syzkaller and generate fuzzers for it.
Run the syzkaller with new syscall

Steps

Modify the kernel code, for eg : we will modify ptrace syscall

diff --git a/kernel/ptrace.c b/kernel/ptrace.c
index 43d6179508d6..8e4e92931d5f 100644
--- a/kernel/ptrace.c
+++ b/kernel/ptrace.c
@@ -1245,6 +1245,9 @@ SYSCALL_DEFINE4(ptrace, long, request, long, pid, unsigned long, addr,
     struct task_struct *child;
     long ret;

+    if (pid == 0xdeadbeaf)
+            BUG();
+
     if (request == PTRACE_TRACEME) {
         ret = ptrace_traceme();
         if (!ret)

The compile the kernel with modified code.

Navigate to the syzkaller dir and modify the file sys/linux/sys.txt
```
ptrace$broken(req int64, pid const[0xdeadbeaf])
```

Generate fuzzer for the new syscall

make bin/syz-extract
./bin/syz-extract -os=linux -sourcedir=$KSRC -arch=amd64 sys.txt
make generate
make

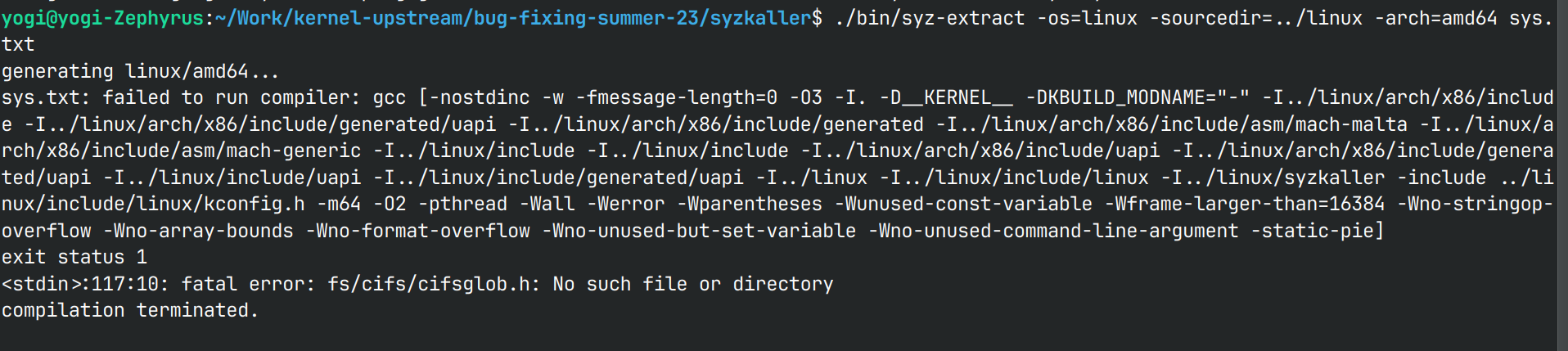

Note: I was not able to do this step because it gives errors.

Enable the newly added syscall in config.cfg
```
"enable_syscalls": [ "ptrace$broken"]
```
Run syzkaller
```
./bin/syz-manager -config=config.cfg
```

Fuzzing complex subsystems in kernel

Syzkaller comes with set of system calls for linux - https://github.com/google/syzkaller/tree/master/sys/linux
Some subsystems are better supported (like USB, socket-related syscalls) than others.
To fuzz these complex sub-systems, we use a combination of techniques like,
1. Using syzkaller resources to, define an order to syscalls and to store the device state and data.
2. Using udev (in rfs) to symlink drivers so that a particular driver is targeted by the syzkaller. (Syzkaller may not be able to send syscalls to /dev/video0 so syzkaller sends it to /dev/vim2m which is symlinked to video0 )
3. Using pseudo-syscalls - Allows syzkaller to run custom c functions defined as pseudo-syscalls.
